MTD014120 - Basic machine

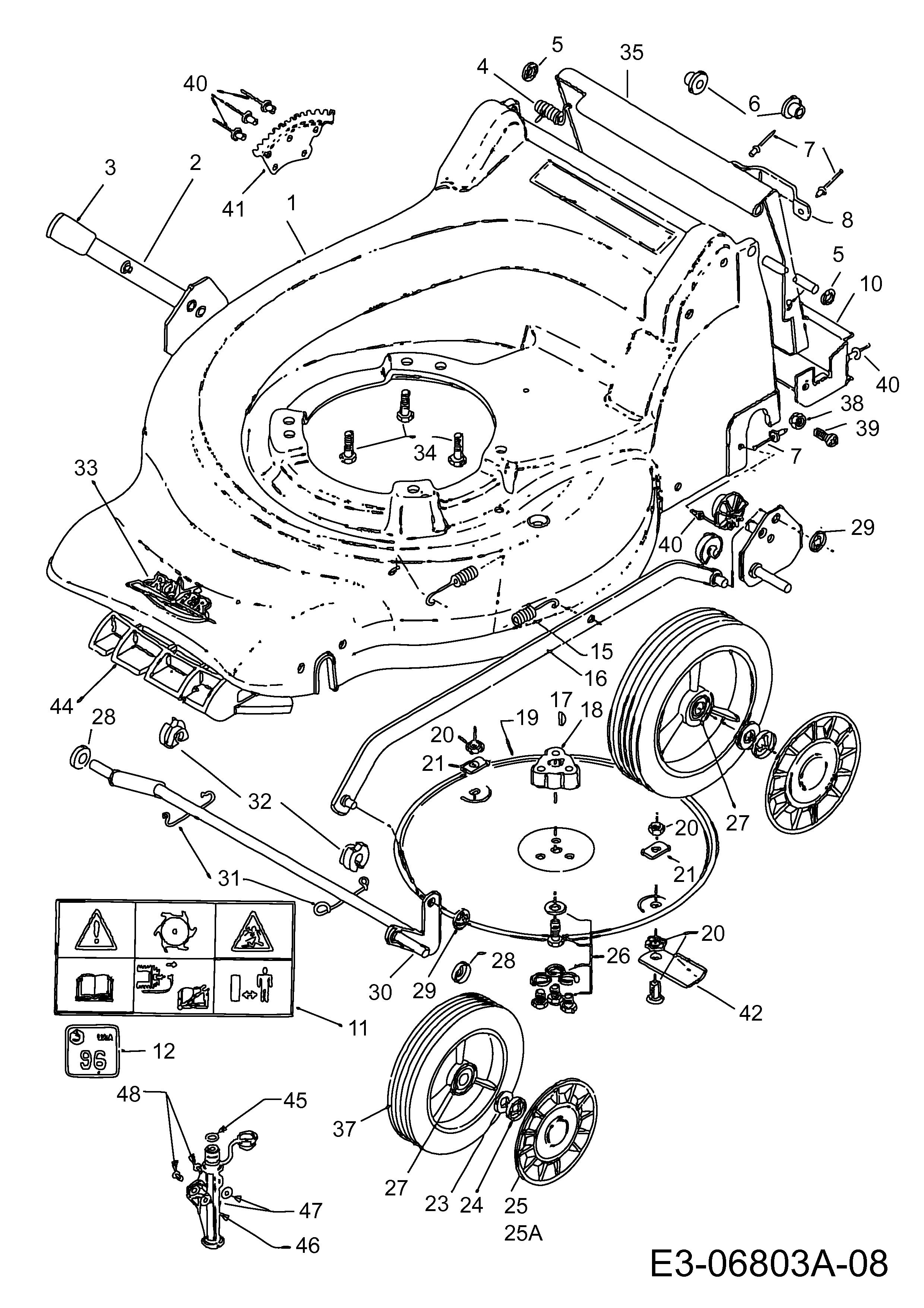

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014120

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 A03840 BASE MOD 35/75 ALLOY N/A POA
002 687-05031 LEVER HEIGHT ADJ 30/35/70/75 A10460 (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
003 731-08955 GRIP (DOM) A03250 £1.80 Add
004 A03718 SPRING FLAP 3291/32H160 £2.79 Add
005 726-0201 SPEED NUT £3.10 Add
006 731-09032 BUSH DOM/MOD 50 £2.01 Add
007 728-04071 RIVET 73AS 6-4 (OBSOLETE) £1.71 Add
008 731-09205 HANDLE FLAP 35/75/50/60 £1.87 Add
009 A03895 NO LONGER AVAILABLE N/A POA
010 A03667 REAR AXLE RETAINER 30/35 A03703 N/A POA
011 777S34232 NO LONGER AVAILABLE N/A POA
012 A03491 N/A POA
015 A02591 HEIGHT ADJ SPRING DOM/MOD 50 N/A POA
016 A10451 CONBAR ASSY 30/70/35/75 N/A POA
017 714-0365 KI PRO KEY £5.39 Add
018 748-04293 BLADE BOSS (OBSOLETE) N/A POA
019 787-02069-0637 DISC BLADE BLACK £25.15 Add
020 A00673K NO LONGER AVAILABLE N/A POA
021 787-02071 OBSOLETE N/A POA
023 736-05009 FLAT WASHER £3.18 Add
024 736-04645 Ratch plate dom £5.57 Add
025 731-09417 NO LONGER AVAILABLE N/A POA
026 951-00012 NO LONGER AVAILABLE N/A POA
027 741-04317 NO LONGER AVAILABLE N/A POA
028 A03459 WHEEL DUST SEAL £1.83 Add
029 A2501116 WASHER STARLOCK £2.93 Add
030 A10452 FRONT AXLE N/A POA
031 A03442/74 BUSH & CLIP (OBSOLETE) (OBSOLETE) N/A POA
032 A03442/74 BUSH & CLIP (OBSOLETE) (OBSOLETE) N/A POA
033 A03891 ROVER LOGO 35/75(RED) N/A POA
034 A02127K NO LONGER AVAILABLE N/A POA
035 787-03019 NO LONGER AVAILABLE N/A POA
037 634-05034 WHEEL ASSY 6 1/2 70-75 & 30-35 £15.72 Add
038 A02193K NO LONGER AVAILABLE N/A POA
039 A04109K N/A POA
040 2901195 N/A POA
041 A10284K HEIGHT ADJ.KIT 20/50/60 £19.89 Add
042 742-04404 BLADE TIP £3.49 Add
044 731-09035 NOSE COMB 35/75 CE A03940 £5.05 Add
045 721-04484 O-RING £1.51 Add
046 731-09073 WASHPORT MOULDING EXPORT A16302 £2.44 Add
047 736-04653 WASHER FLAT £2.14 Add
048 728-04074 RIVET £1.47 Add
25A A03327 HUB CAP RED (BALL BEAR.WHEELS) £3.49 Add
