MTD014393 - Basic machine

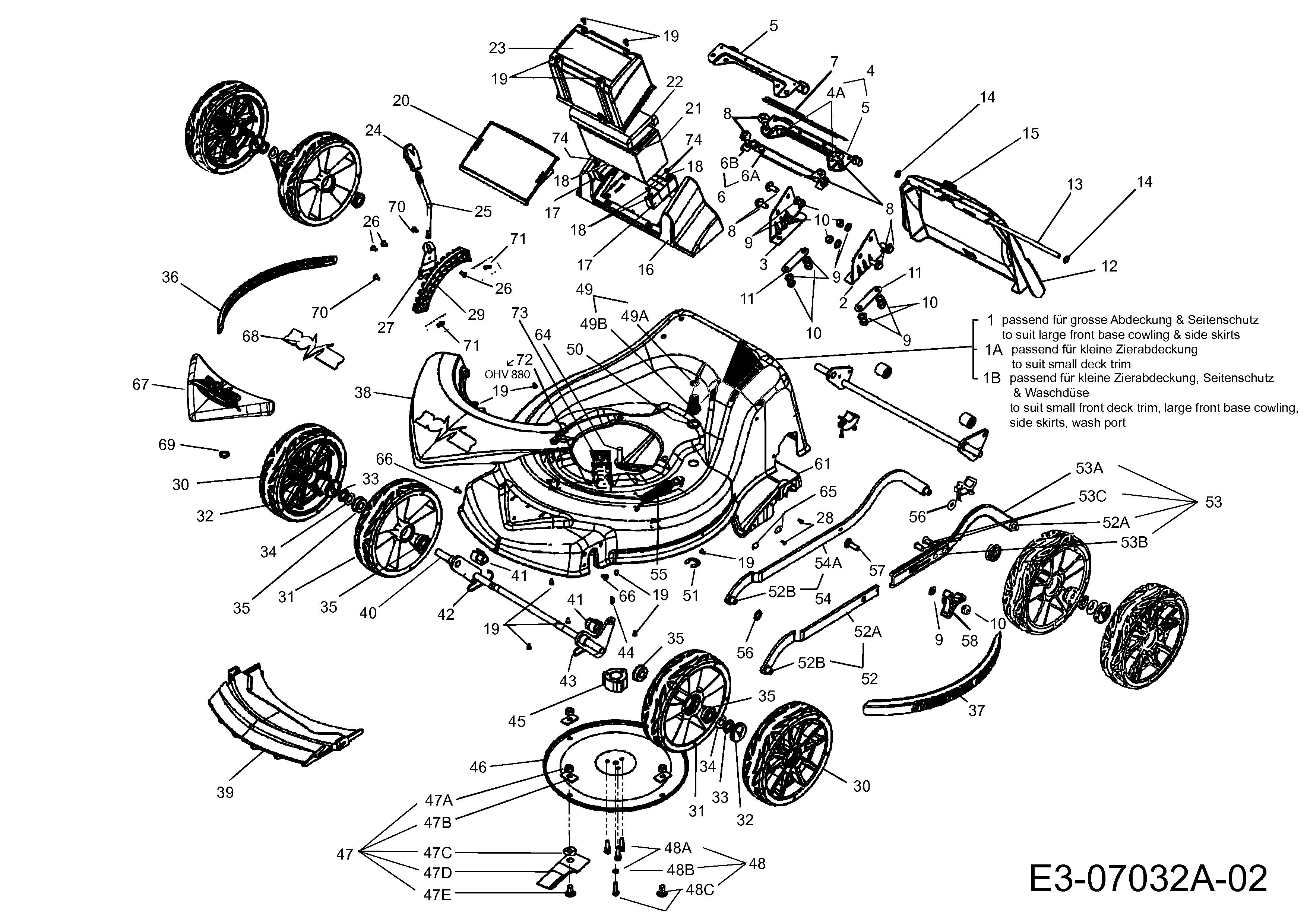

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014393

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 A10856 N/A POA
002 A16669 N/A POA
003 A16670 N/A POA
004 A10882 N/A POA
005 A16668 N/A POA
006 A10881 N/A POA
007 A16804 N/A POA
008 A04189 N/A POA
009 A04206 N/A POA
010 A04188 NUT M8 N/A POA
011 A16678 N/A POA
012 A16663 N/A POA
013 A16671 N/A POA
014 726-0201 SPEED NUT £3.10 Add
015 A16684 N/A POA
016 A16665 N/A POA
017 A16773 N/A POA
018 A04198 N/A POA
019 A04196 N/A POA
01A A10855 N/A POA
01B A10883 N/A POA
020 A16673 N/A POA
021 725-06052 BATTERY £105.32 Add
022 A16776 N/A POA
023 A16672 N/A POA
024 A16694 N/A POA
025 A16693 N/A POA
026 A16695 N/A POA
027 A16692 N/A POA
028 A04203 N/A POA
029 A16691 N/A POA
030 A10862 SPORT WHEEL HUB N/A POA
031 A10863 N/A POA
032 A16726 N/A POA
033 736-04645 Ratch plate dom £5.57 Add
034 736-05009 FLAT WASHER £3.18 Add
035 741-04317 NO LONGER AVAILABLE N/A POA
036 A16676 N/A POA
037 731-08128 COVER £9.26 Add
038 A16664 N/A POA
039 A16772 N/A POA
040 A10843 N/A POA
041 A16696 N/A POA
042 A16700 N/A POA
043 A16701 N/A POA
044 714-0365 KI PRO KEY £5.39 Add
045 748-04293 BLADE BOSS (OBSOLETE) N/A POA
046 787-02069-0637 DISC BLADE BLACK £25.15 Add
047 SA03930673K10 NO LONGER AVAILABLE N/A POA
048 951-00012 NO LONGER AVAILABLE N/A POA
049 A10851 N/A POA
04A A04219 N/A POA
050 A16778 N/A POA
051 B896-15 N/A POA
052 A10877 N/A POA
053 A10878 N/A POA
054 A10844 N/A POA
055 A16709 N/A POA
056 A04190 N/A POA
057 A04184 N/A POA
058 720-04187 VANE ACTUATOR KNOB £4.02 Add
061 A16667 N/A POA
064 710-04683B SCREW TAPTITE £2.56 Add
065 A04218 N/A POA
066 A04227 N/A POA
067 A16819 N/A POA
068 A16820 N/A POA
069 A04228 N/A POA
06A A04219 N/A POA
06B A16793 N/A POA
070 A04229 N/A POA
071 712-04328 NYLOC NUT £2.56 Add
072 A04230 N/A POA
073 A02031 WASHER SS £1.61 Add
074 A04197 N/A POA
47A 712-04065 NUT £4.02 Add
47B 787-02071 OBSOLETE N/A POA
47C A01025 BLADE WASHER STEEL (MIN.100) N/A POA
47D 742-04404 BLADE TIP £3.49 Add
47E 738-04547 BOLT SHOULDER £3.20 Add
48A 710-05454 SCREW HEX £1.88 Add
48B 736-04626 FLAT WASHER £1.66 Add
48C A04144 SETSCREW A02110 N/A POA
49A 721-04484 O-RING £1.51 Add
49B 18100141 N/A POA
52A A16779 N/A POA
52B A16708 N/A POA
53A A16780 N/A POA
53B A16781 N/A POA
53C A16782 N/A POA
54A A16707 N/A POA
