MTD013807 - Drive system

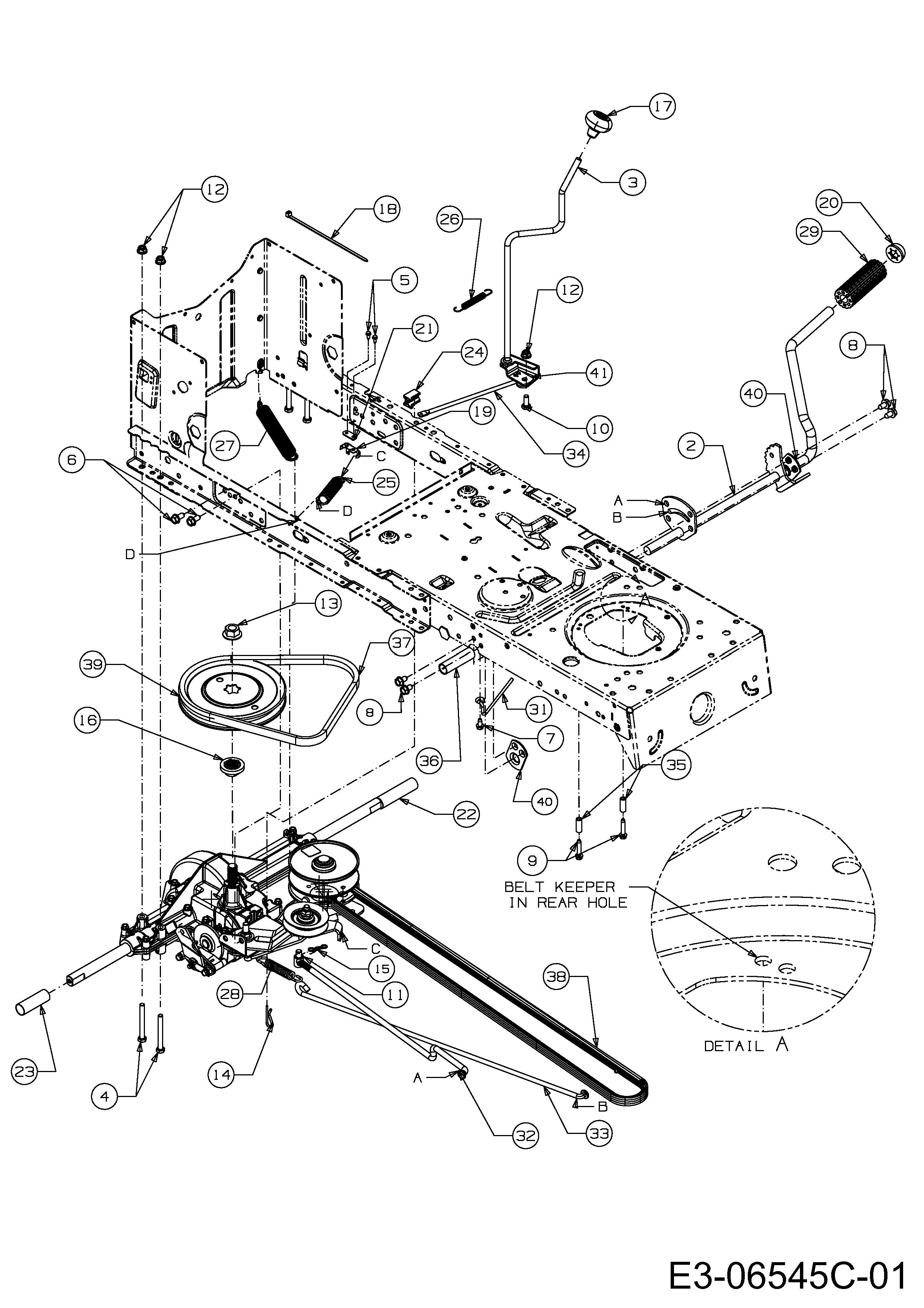

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD013807

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 647-04034C PED ASM:DRIVE LT-5 N/A POA
003 647-04266 LVR ASM:SHFT £28.82 Add
004 710-0176 HHCS:5/16-18:2.75:GR5:STD £6.11 Add
005 710-0227 SCR:AB:#8-18:0.500:HXINDWH £3.07 Add
006 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
007 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
008 710-0604A SCREW £3.62 Add
009 710-0809 SCR:TT:1/4-20:1.250:HXINDWSH £3.42 Add
010 710-3008 HEX BOLT £3.03 Add
011 711-06103 FERRULE 3/8-24 X .375 £14.15 Add
012 712-04063 FLANGED NUT £4.20 Add
013 712-0700 NUT:FLANGE:9/16-18:GR2 £13.38 Add
014 714-0209 INTERNAL COTTER PIN .125 DIA £3.49 Add
015 714-04040 PIN-COTTER £4.38 Add
016 718-04407 HUB:PUL:5/8 SPLINE £20.19 Add
017 720-04028 SHIFT KNOB BLACK £8.34 Add
018 725-0157 NO LONGER AVAILABLE N/A POA
019 725-1644 SWITCH:SPRING:SHORT £6.24 Add
020 726-0214 PUSH CAP £5.36 Add
021 726-0320 INSULATING PLATE £2.97 Add
022 731-04602 SLEV:.758X.821X3.3125 £5.91 Add
023 731-04604 SLEV:.758X.821X2.4375 £5.50 Add
024 731-06894 BRG:PLT:SHIFT £8.82 Add
025 732-04306 EXTENSION SPRING £12.55 Add
026 732-04488 SPRING:EXT:.38 OD x 3.25 LG £16.58 Add
027 732-04746 SPR:EXTN:.94 DIA. x 6.75 LG £12.33 Add
028 732-0716D SPRING EXTENSION £14.42 Add
029 735-0239A FOOT PAD £8.75 Add
031 747-04969 ROD:KEEPR:BELT £16.56 Add
032 747-05186 ROD:CONT:VARI SPEED £18.94 Add
033 747-05188 ROD:BRAKE:LT-5 TRANS £26.82 Add
034 747-05244 ROD:SHFT:LT-5 STRETCH £12.34 Add
035 750-0566A SPACER £7.75 Add
036 750-0802 SPCR:.640 ID X .76 OD X2.63 LG £3.20 Add
037 754-05040 V BELT £38.34 Add
038 754-04249A V BELT £93.96 Add
039 756-04002 PULLEY:V-TYPE:7.25 DIA SPUN £35.15 Add
040 783-04536B-S BRKT:PED:SUPT: LT-5 £14.02 Add
041 783-04595A BRKT:SHFT:ADJ £7.30 Add
