MTD014197 - Mowing deck S (42"/107cm)

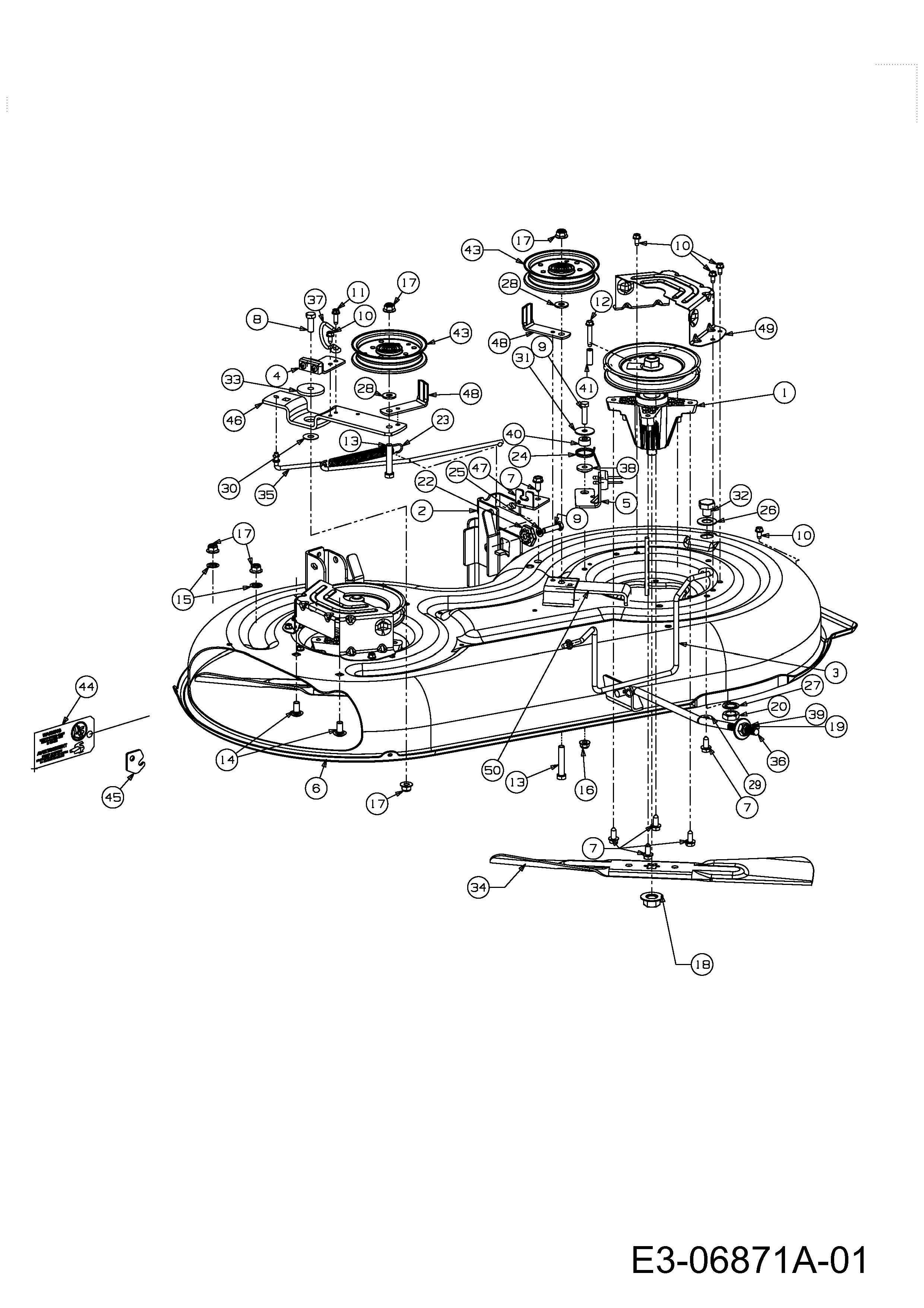

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014197

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04822A SPDL ASM:PUL:5.695 DIA X .5625 £121.70 Add
002 683-0254B BRKT:ASM:DECK:HNGR LH LT (OBSOLETE) N/A POA
003 683-04443 ROD ASM:KEEPR:BELT 42":PAINT N/A POA
004 683-04511 BRAKE ASM DECK £36.27 Add
005 683-04525 BRAKE ASM:YOKE:LH £52.33 Add
006 683-04570 N/A POA
007 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
008 710-0514 HEX BOLT £3.81 Add
009 710-0528 SCREW (DNR) £3.55 Add
010 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
011 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.68 Add
012 710-0778 HEX WASHER HEAD SCREW £3.20 Add
013 710-3144 SCREW £3.28 Add
014 710-3178 BOLT SHORT NECK CARR £11.46 Add
015 712-0229 NUT PUSH £5.20 Add
016 712-04063 FLANGED NUT £4.20 Add
017 712-04065 NUT £4.02 Add
018 712-05134 BLADE NUT £3.81 Add
019 712-04243 NUT £5.00 Add
020 712-0641 NUT £6.47 Add
021 714-04043 COTTER PIN £4.29 Add
022 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
023 732-0384 EXT SPRING £15.79 Add
024 732-04727 Spring £14.89 Add
025 736-0119 LOCK WASHER 5/16 £3.33 Add
026 736-0187 FLAT WASHER £3.19 Add
027 736-0225 WASHER (RED) £5.32 Add
028 736-0300 WASHER £2.81 Add
029 736-0300 WASHER £2.81 Add
030 736-0344 WASHER:FLAT:.385x1.000x.030 £7.50 Add
031 736-0362 WASH-FLAT:.330 x 1.25 x.06:HD £4.66 Add
032 738-04146 PLUG:BOLT:M16 X 1.5 £8.94 Add
033 738-04162C SPACER £4.64 Add
034 742-04308 BLADE £59.01 Add
035 747-05105 ROD-DECK BRAKE N/A POA
036 747-05141A ROD:LIFT:DECK:MEDIUM £26.75 Add
037 747-05323 ROD BELT KEEPER N/A POA
038 748-0234 SHOULDER SPACER £5.43 Add
039 748-04069 PIVOT CUP £4.12 Add
040 750-0258 SPCR:.315 X .75 X .375LG £6.91 Add
041 750-0566A SPACER £7.75 Add
042 754-04060C BELT £62.72 Add
043 756-04129C PUL:IDLR:4.25" DIA 756-04129 N/A POA
044 771-11725A TAG:DNGR:RT-99 CHUTE BLNGL N/A POA
045 783-05219 BRKT:STOP:CHUTE 50"/54" £14.15 Add
046 783-05946 BRACKET-IDLER PIVOT £23.64 Add
047 783-06243 N/A POA
048 783-06368A N/A POA
049 783-06424A N/A POA
050 783-06643 N/A POA
