MTD016129 - Mowing deck S (42"/107cm)

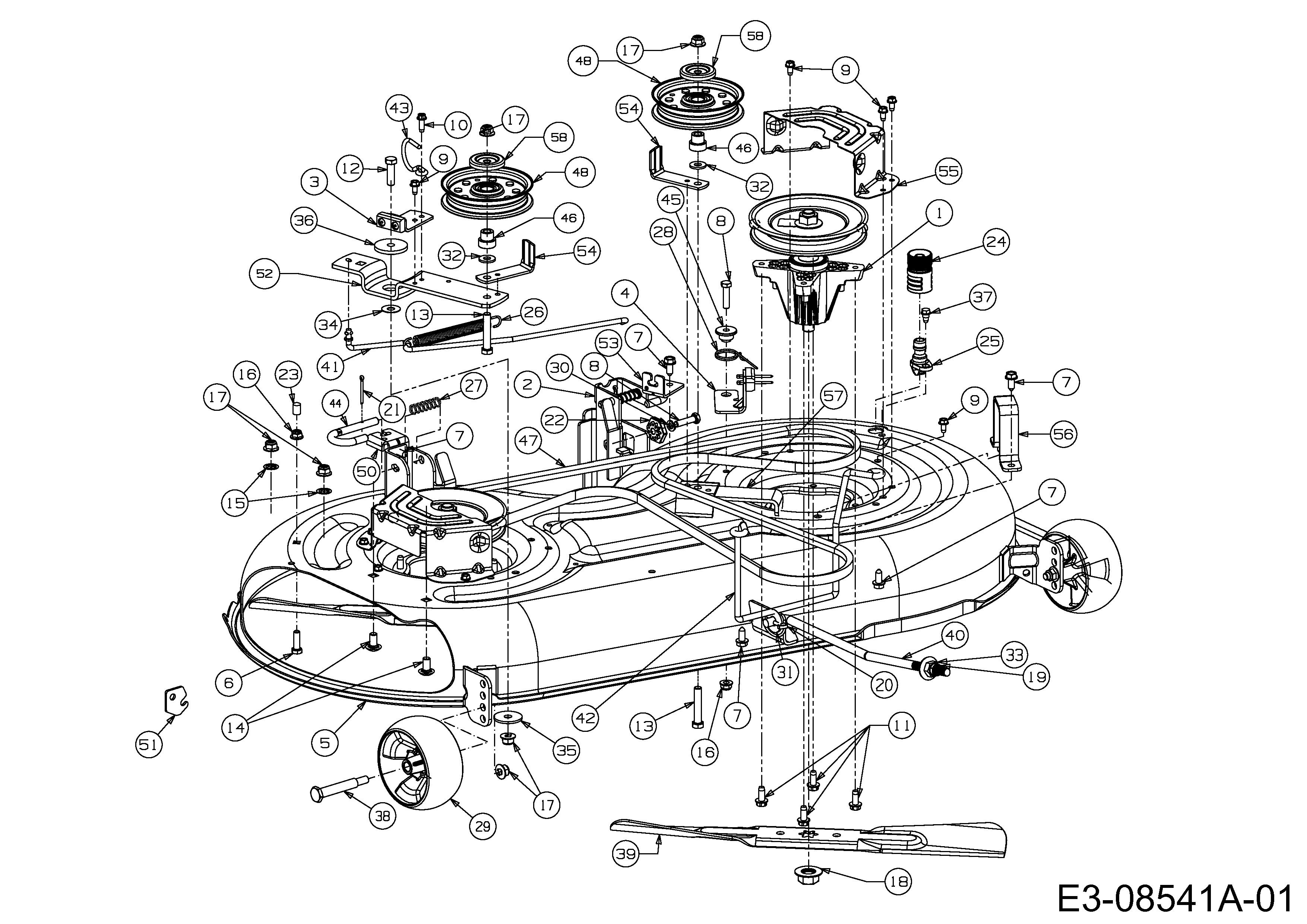

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016129

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04822A SPDL ASM:PUL:5.695 DIA X .5625 £121.70 Add
002 683-0254B BRKT:ASM:DECK:HNGR LH LT (OBSOLETE) N/A POA
003 683-04511 BRAKE ASM DECK £36.27 Add
004 683-04525 BRAKE ASM:YOKE:LH £52.33 Add
005 683-04572A N/A POA
006 710-0376 SCREW HEX CAP 5/16 £9.02 Add
007 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
008 710-0528 SCREW (DNR) £3.55 Add
009 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
010 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.68 Add
011 710-1260A SCREW £4.00 Add
012 710-3005 BOLT £3.24 Add
013 710-3144 SCREW £3.28 Add
014 710-3178 BOLT SHORT NECK CARR £11.46 Add
015 712-0229 NUT PUSH £5.20 Add
016 712-04063 FLANGED NUT £4.20 Add
017 712-04065 NUT £4.02 Add
018 712-05134 BLADE NUT £3.81 Add
019 712-04243 NUT £5.00 Add
020 753-04070 HINGED PIN £12.24 Add
021 714-0470 COTTER PIN £5.07 Add
022 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
023 720-05010 CAP VINYL £4.62 Add
024 721-04041 ADAPER:WATER NOZZLE £16.76 Add
025 731-07487 NOZ:DECK WSH £16.29 Add
026 732-0384 EXT SPRING £15.79 Add
027 732-04652 SPR:COMP:.535 OD x 1.751 LG £8.11 Add
028 732-04840 TORSION SPRING N/A POA
029 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
030 736-0119 LOCK WASHER 5/16 £3.33 Add
031 736-0179 WASHER-FL £14.34 Add
032 736-0300 WASHER £2.81 Add
033 736-0317 BELLE WASHER £8.58 Add
034 736-0344 WASHER:FLAT:.385x1.000x.030 £7.50 Add
035 736-3039 WASH:FLAT:.406 x 1.5 x .105 £2.00 Add
036 738-04162C SPACER £4.64 Add
037 738-04278 SCR:SHLDR:1/4-20:0.50:HXINDWSH £3.49 Add
038 738-3056 SHOULDER BOLT £12.94 Add
039 742-04308 BLADE £59.01 Add
040 747-04944B ROD:LIFT:DECK:SMALL £37.79 Add
041 747-05105B ROD:BRAKE £29.58 Add
042 747-05171A BELT KEEPER ROD £35.76 Add
043 747-05323 ROD BELT KEEPER N/A POA
044 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
045 748-04272 N/A POA
046 748-05029 SPCR:SHLDR:TOGGLE LOCK (OBSOLETE) N/A POA
047 754-04060C BELT £62.72 Add
048 756-05042 PUL:IDLR:4.25"DIA:HD £32.84 Add
049 771-11725A TAG:DNGR:RT-99 CHUTE BLNGL N/A POA
050 783-04740 BRKT:CBL:DECK ENGAGE (OBSOLETE) N/A POA
051 783-05219 BRKT:STOP:CHUTE 50"/54" £14.15 Add
052 783-05946 BRACKET-IDLER PIVOT £23.64 Add
053 783-06243 N/A POA
054 783-06368A N/A POA
055 783-06424A N/A POA
056 783-06632 N/A POA
057 783-06643 N/A POA
058 783-08389 £9.42 Add
