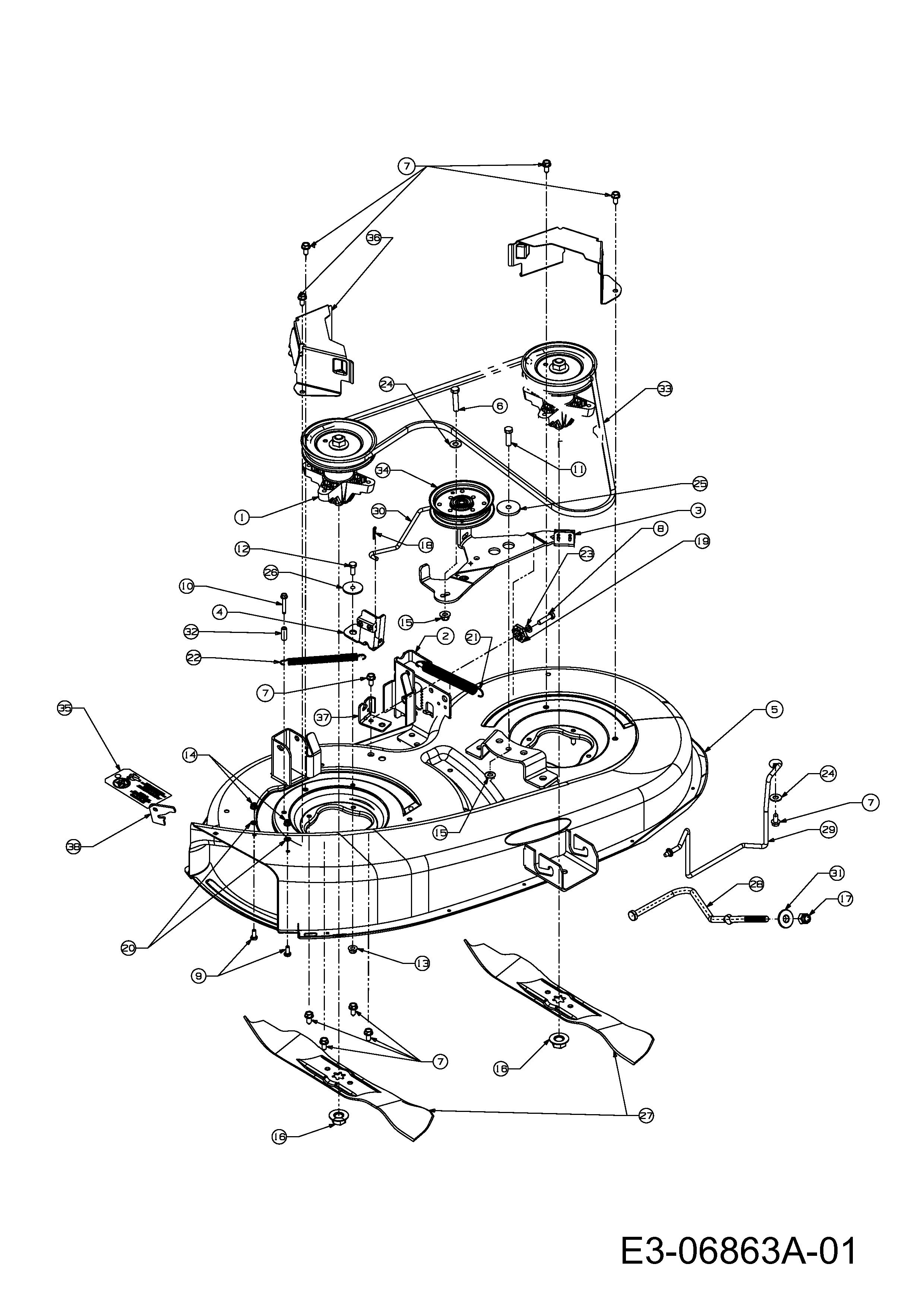

MTD014188 - Mowing deck F (38"/96cm)

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04474B	SPINDLE 5.75 INCH DIA	£132.96	Add
002	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A	POA
003	683-04138B	BRAKE ASM:DECK:42"	£40.90	Add
004	983-04167	BRAKE ASM:DECK 42" 683-04167	£23.95	Add
005	683-04263	DECK ASM:sd: 38"	£347.60	Add
006	710-0347	HEX SCR	£3.72	Add
007	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0751	BOLT 069	£3.39	Add
010	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
011	710-3005	BOLT	£3.24	Add
012	710-3008	HEX BOLT	£3.03	Add
013	712-04063	FLANGED NUT	£4.20	Add
014	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
015	712-04065	NUT	£4.02	Add
016	712-05134	BLADE NUT	£3.81	Add
017	712-04243	NUT	£5.00	Add
018	714-0104	PIN INTERNAL COTTER	£2.78	Add
019	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
020	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
021	732-04280B	EXT SPRING	£18.09	Add
022	732-04287	EXT SPRING	£16.41	Add
023	736-0119	LOCK WASHER 5/16	£3.33	Add
024	736-0300	WASHER	£2.81	Add
025	738-04162C	SPACER	£4.64	Add
026	738-04166	SPACER	£5.21	Add
027	742-0610A	BLADE 19.38" FOR 38" DECK	£43.75	Add
028	747-04322	ROD:DECK:FRNT ADJ .4480" DIA	£31.54	Add
029	747-04332A	ROD:KEEPR:BELT 38"	N/A	POA
030	747-04381	BRAKE ROD 38"	£18.78	Add
031	748-04069	PIVOT CUP	£4.12	Add
032	750-0566A	SPACER	£7.75	Add
033	754-04062	BELT	£66.33	Add
034	756-04129C	PUL:IDLR:4.25" DIA 756-04129	N/A	POA
035	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
036	783-04602A	CVR:BELT:5.66 DIA	N/A	POA
037	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A	POA
038	783-1025	STOP:CHUTE	£7.30	Add
